3GL Program Design - Nassi-Schneiderman diagrams

Exercise 1

Sketch NS diagrams for the following pseudocode fragments:

(1)

IF x = = 100
 THEN IF x = = 120
   THEN IF x = = 140
               THEN DISPLAY 'A'
               ELSE DISPLAY 'B'
   ELSE DISPLAY 'C'
 ELSE DISPLAY 'D'
ENDIF

(2)

X = 1
REPEAT
 X = X + 1
 DISPLAY X
UNTIL X > 10

(3)

X = 0
DOWHILE X < 10
 DISPLAY X
 X = X + 1
END WHILE

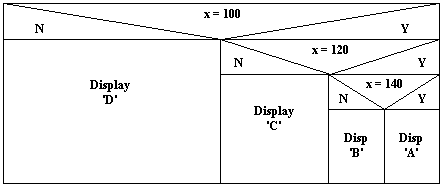

1.  This is an example of a multiway selection.
2. A simple case of a repeat loop. The processes X = X + 1 and DISPLAY X will be repeated until X is greater than 10.

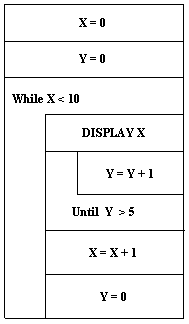

3. A case of a nested loop, a repeat loop within a while loop.
